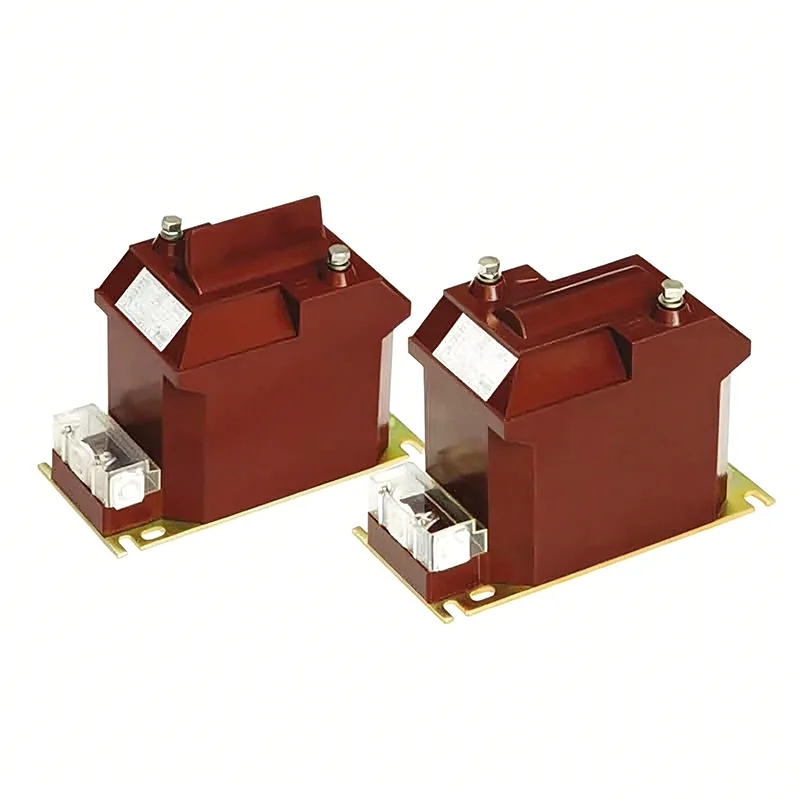

11 kV Voltage Transformer

Youbian is your worry free manufacturer of 11 kV voltage transformers and purchasing compasses. We will always adhere to the forefront of fashion and provide you with leading and advanced products. Please rest assured to choose us! We have always been backed by customer ideas as our top priority!

As an electrical engineer or utility professional, you may regularly handle various power transformer lines. The two most common voltage levels for power distribution are 11 kV (11KV) and 33 kV (33KV). Although both are crucial for transmitting medium distance power to end-users, you should be aware of several key differences between these two types of transformer lines. Understanding the difference between 11KV and 33KV power lines can help you choose, install, and maintain a transformer system that is suitable for your application, avoiding issues such as line overload or power outages.

Understanding the differences between 33KV and 11 kV voltage transformer lines is crucial for mastering the subtle differences in energy transmission. Changes in voltage levels can affect efficiency, capacity, and system design, thereby affecting the distribution of electricity in the network. These knowledge enable professionals in the field of electrical engineering to make informed decisions regarding power distribution and infrastructure upgrades.

Understand power transformers and their role in power distribution

The 11 kV voltage transformer is an important component in any distribution system. They are used to increase or decrease voltage levels to promote efficient long-distance transmission.

The two most common types of power transformers used by utility companies are 11 kV and 33 kV transformers. 11kV transformers are commonly used for power distribution in residential areas. They will lower the higher voltage level to 11000 volts for delivery to homes and businesses. 33kV transformers are used for long-distance transmission and distribution. They are used to raise the voltage of power plants to 33000 volts for transmission through power lines.

There are several key differences between 11kV and 33kV power transformers

Rated voltage: The rated voltage of an 11kV transformer is 11000 volts, while the rated voltage of a 33kV transformer is 33000 volts. The higher rated voltage of a 33kV transformer allows for reduced power loss over longer transmission distances.

Capacity: 33kV transformers typically have higher capacities, typically 10 megavolt amperes (MVA) or higher, while most 11kV transformers have capacities of 1-5 MVA. The larger capacity of 33kV transformers is necessary for handling higher power levels required for long-distance transmission.

Cost: 33kV power transformers are more expensive, typically costing millions of dollars, due to their larger size, higher rated voltage, and more complex design. 11kV transformers are more affordable, ranging from $50000 to $500000.

Usage: 11kV transformers are mainly used for power distribution to end users, while 33kV transformers have dual purposes of long-distance transmission and power distribution to large commercial centers or industrial areas with high demand.

In summary, although 11kV and 33kV power transformers have the same basic function of changing voltage levels, they have significant differences in rated voltage, capacity, cost, and usage in the power grid. Understanding these differences is crucial for utility planning and ensuring efficient power transmission.
