The main insulation material for Youbian's durable 24 kV voltage transformer is Araldite ® Epoxy resin is specially used for outdoor voltage transformers, which are made of UV resistant cycloaliphatic epoxy resin. The type and routine tests of Youbian medium voltage transformers are conducted by Youbian's advanced power laboratory, which has obtained certification from ILAC member TAF, ensuring excellent quality. With decades of professional experience in voltage transformer manufacturing, Youbian provides customized and ODM/OEM services, which are widely used in metering and distribution projects by global power companies, large-scale projects, and construction companies.

Features

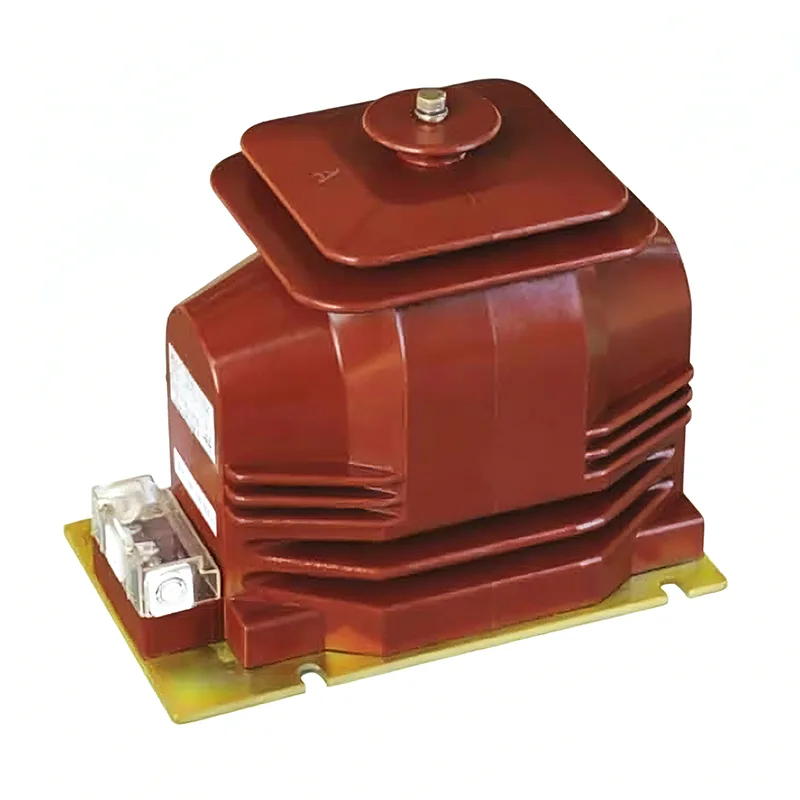

24 kV voltage transformer is a medium voltage transformer used for indoor applications, which proportionally converts one or more primary voltages

These transformers are completely resin hardened in polyurethane.

The 24 kV voltage transformer can be used for measurement and protection purposes.

Medium voltage transformers also have two windings. The maximum number of windings depends on

Select the load and accuracy level.

Single pole isolated voltage transformers can be equipped with an additional winding for ground fault detection.

Optionally, the voltage transformer can be equipped with a secondary tap for two primary rated voltages

In addition, these 24 kV voltage transformers can be equipped with screw fixed main fuses to protect the surrounding distribution system.

advantage

Used for measuring and/or protecting high voltage transformers up to 24 kV, used for measuring instruments, meters, relays, and other similar equipment. Designed for indoor use.

The primary winding is sealed with E-grade epoxy resin, and the magnetic circuit and secondary winding are located outside the resin casing.

Due to this structure, there is no risk of fragment projection.

The 24 kV voltage transformer is a type of relative to ground transformer; A single-phase transformer is used to directly ground one end of the primary winding.

The design of the 24 kV voltage transformer takes into account environmental factors as it does not use oil or fluorinated gases as insulation materials.

It has mechanical resistance, moisture resistance, oil resistance, dust resistance, and resistance to most chemical products.

Manufactured according to IEC 61869:1 and IEC 61869:3 standards.

In addition to the widely used 12/24 kV series, this multifunctional series also includes single pole voltage transformers, which can be combined into three-phase voltage transformers and ground potential transformer groups. There are also voltage transformers specifically designed for SF6 insulated MOF panels. This product line also includes dual function models for voltage transformers and control power transformers, providing additional power functionality for circuit breaker operation. Another unique product is a voltage transformer with a metal conductive coating for shielding. The important choice to complete this is the UV resistant outdoor voltage transformer used for income measurement, which is highly sought after by many national power companies.
