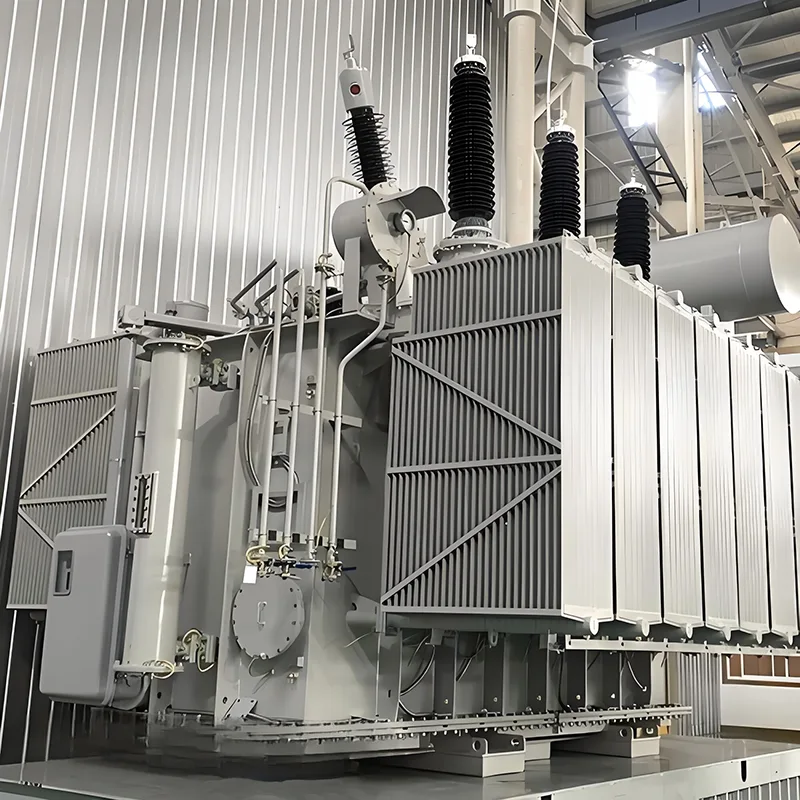

35kv 20mva Industrial Power Plant Transformer

The 35kV 20mVA industrial power plant transformer is a key component designed by Youbian for industrial facility transmission and distribution. Youbian is committed to producing high-quality 35kV power transformers. Since its establishment, Youbian has had a good track record of performance, which is why we have established a complete quality management system for power transformers. After the design of the 35kV power transformer is completed, engineers will supervise every step of the production process. Each 35kV 20MVA industrial power plant transformer must undergo factory testing, especially when exported overseas. To ensure product quality, multiple leakage tests are required.

1) The secondary voltage is low, only tens to hundreds of volts, and can be adjusted within a large range.

2) The secondary current is usually between several thousand amperes and tens of thousands of amperes. Electric arc furnace transformers are usually indoor equipment.

3) Good high temperature resistance.

feature

Analysis of the structure of a 35kV 20MVA industrial power plant transformer shows that the iron core and winding are two key components of the transformer, playing an important role in its operation. In a 35kV 20MVA industrial power plant transformer, the iron core is both a magnetic circuit and a mechanical framework, consisting of iron core columns and iron core yokes. The iron core column is mainly used to accommodate windings and form a series of circuit paths; The iron core yoke is the core component that connects the entire power system circuit. The iron core plays a crucial role in ensuring the normal operation of the iron core yoke.

At the same time, while the iron core yoke functions, the iron core must also meet the conditions of reliable grounding to fulfill its important role. The winding is another key component of the 35kV 20mVA industrial power plant transformer, serving as the electrical circuit of the transformer. In order to improve the service life and quality of transformers in actual operation, there are strict requirements for the electrical performance, heat resistance, and mechanical strength of winding components. Therefore, most power companies tend to choose concentric windings because of their simple structure and ease of manufacturing, making them widely used in various situations that meet people's lifestyles and business needs.

advantage

Oil immersed insulation can protect windings from dust and moisture, minimizing maintenance to the greatest extent possible. The typical service life of 25-30 years reduces long-term replacement costs.

Compared with large transformers, the 35kV 20mVA industrial power plant transformer occupies a smaller area, making it very suitable for industrial plants and solar facilities with limited land.

The 35kV output supports global medium voltage distribution systems, including Europe, Asia, Africa, and Australia. This makes it easy to connect to the grid without the need for additional voltage conversion equipment.
