Youbian is one of the top suppliers of 3000 3150 KVA dry type transformers in China, with its own factory. If you need to visit China, you can come and visit our factory on your way. We have complete equipment and advanced talents to provide after-sales service for you! Please feel free to cooperate with us and communicate to resolve the issue!
From the initial two-dimensional electric field simulation, three-dimensional electric field measurement, and impulse characteristic measurement to the theoretical analysis and simulation tests of the main insulation, longitudinal insulation, end insulation, lead insulation, and coil characteristics of the 3000 3150 kVA dry type transformer subjected to lightning impulse voltage in the later stage, after several years and multiple verification methods, the absolute insulation of the transformer has been ensured.
We specialize in the calculation and measurement of the leakage magnetic field of 3000 3150 kVA dry type transformers, the shielding structure of the leakage magnetic field, the calculation of the dynamic and thermal stability of the transformer, and the improvement of the dynamic and thermal stability capabilities of the transformer, in order to ensure the calculation of the leakage inductance field and reduce stray losses, and improve the dynamic stability of the transformer.
Our company has collaborated with universities such as Beijing University of Science and Technology and Huazhong University of Science and Technology to jointly develop a calculation program for the temperature field of the coil. By calculating the loss distribution of the coil (including resistance loss, eddy current loss in different directions, and circulating current loss between parallel wires) and the cooling condition of the flow velocity field, we can accurately calculate the temperature distribution of the coil and the temperature rise of the hot spot, so as to take measures to effectively control the temperature rise of the hot spot that affects the life of the 3000 3150 kVA dry type transformer.

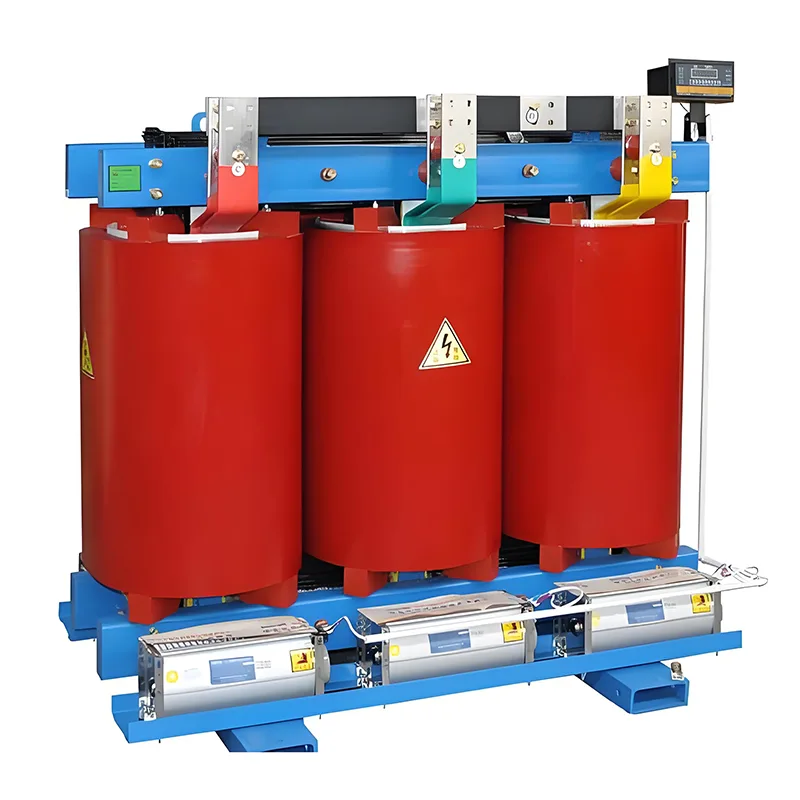

The 3000 3150 KVA dry type transformer is made by injecting non-toxic flame-retardant epoxy resin
High mechanical strength, flame retardant, fire-resistant, and pollution-free
The whole machine enters the site and can be put into operation once it is in place
The insulation and heat resistance level of the transformer is H level
The heat-resistant temperature reaches 180 ℃, and the maximum overload capacity reaches 200%
3000 3150 KVA dry type transformer can be installed together with electrical equipment such as rectifiers
No need to design a separate distribution room, saving space and reducing one investment
