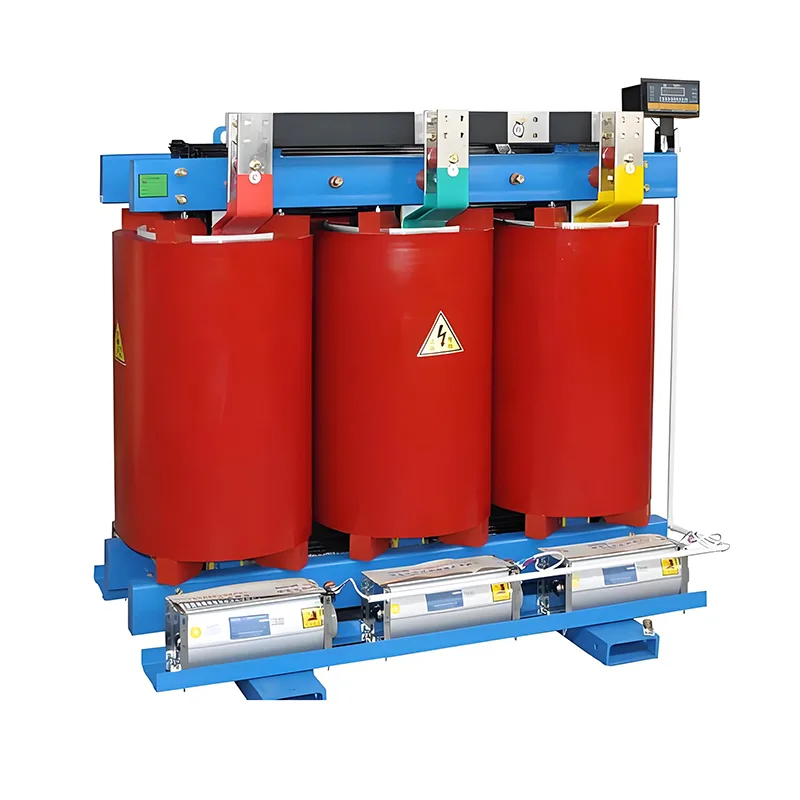

100 KVA Dry Type Transformer

When you are worried about how to solve the problem of transformer selection, Youbian's high-quality 100 KVA dry type transformer will meet your requirements and expectations. Our team also provides customized services. If you have different requirements for dry-type transformers, you can come to us for service. We have a complete set of technical personnel to serve you throughout the entire process! Feel free to contact us anytime~

1. The 1-100 KVA dry type transformer is made of high-quality high magnetic conductivity silicon steel, with full oblique joints and multi-stage step-by-step process, resulting in low no-load loss.

2. The surface adopts nano paint self leveling technology, with low noise.

3. Strong waterproof and short-circuit resistance, strong overload capacity, good electrical performance, safe and reliable.

4. Using electric field, temperature field, and magnetic field simulation analysis, it was the first in China to pass KEMA's E2, C2, and F1 tests.

scope of application

The 100 KVA dry type transformer can be used for basic power distribution in conventional factories and distribution rooms, such as general workshops and distribution rooms, to meet the demands of conventional loads.

Commercial complex computer room and property distribution room, balancing installation convenience and maintenance efficiency.

Of course, our 100 KVA dry type transformer can also be used for conventional power distribution in public buildings, such as schools, communities, and other scenarios, emphasizing safe and stable operation.

Features

The 100 KVA dry type transformer is made of epoxy resin cast as a whole, which has excellent insulation, moisture resistance, and high temperature resistance, ensuring the stability and reliability of the transformer.

Oil free design, good fire resistance, no leakage risk, and will not cause environmental pollution.

Using environmentally friendly materials, non-toxic and harmless, does not require oil cooling, and meets environmental and energy-saving requirements.

Optimized coil and iron core structure, stronger short-circuit resistance, suitable for long-term continuous operation conditions.

The 100 KVA dry type transformer does not require oil maintenance, with simple daily inspections and easier fault location, reducing maintenance workload and downtime risks.

advantage

Integrating electromagnetic optimization design, parametric drawing, performance analysis and structural optimization, automatic drawing, and other functions of a 100 kVA dry type transformer to achieve transformer design resource sharing, as well as searching, modifying, and version control of various data information.

Flow field, temperature field, electric field, leakage magnetic field, wave process, short-circuit force. The research and design of each series of products are carried out through simulation analysis of flow and temperature fields to determine the average temperature rise of the coil and the hot spot temperature seat, ensuring product performance.

By collecting key data such as temperature, current, voltage, vibration, and grid harmonics from a 100 kVA dry type transformer, online power quality analysis, fault alarms, and installation on mobile devices can be achieved.
