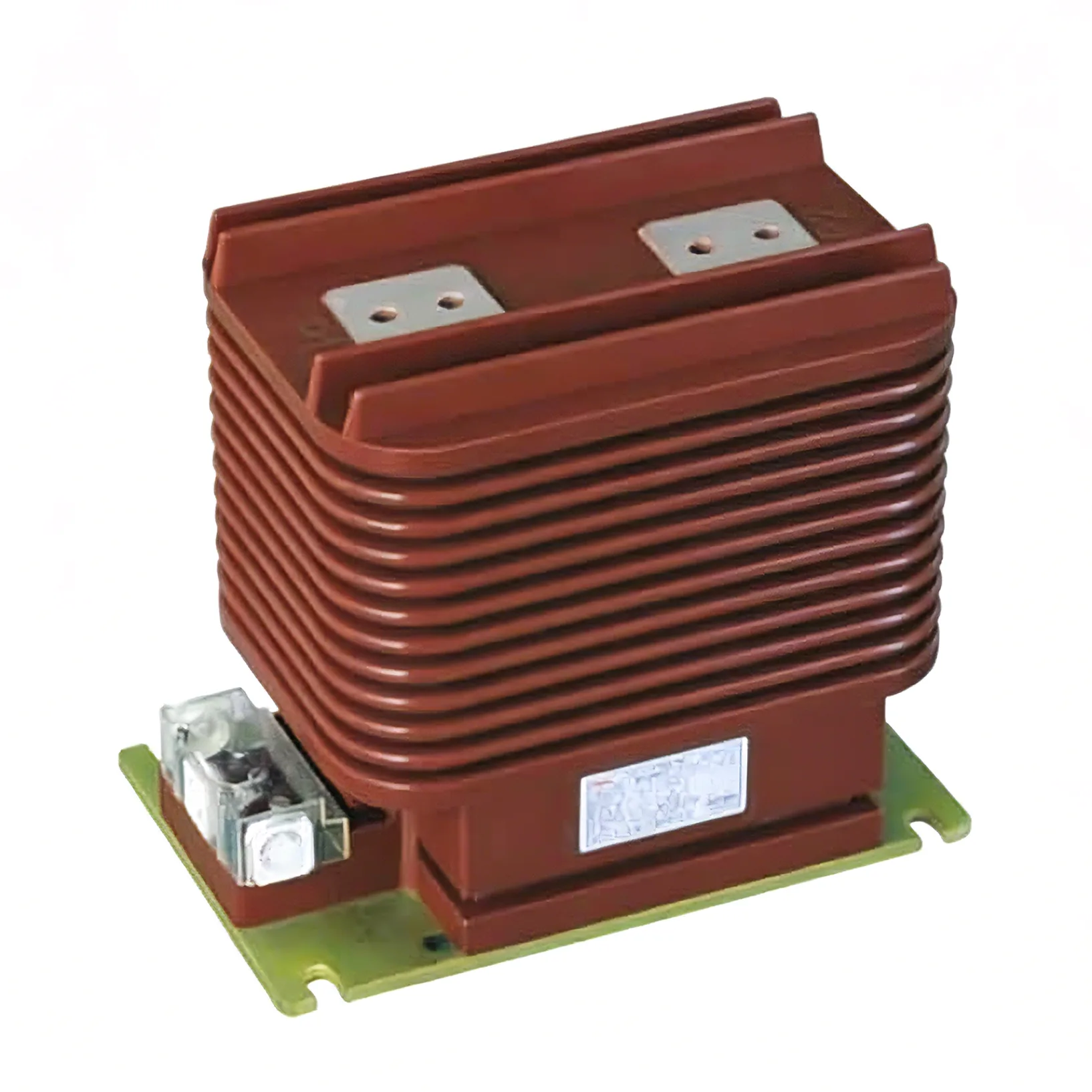

The 24 kV current transformer manufactured by Youbian is an important component of indoor switchgear. If you are using indoor switchgear, our product is definitely suitable for you and plays a crucial role in modern electrical systems. It not only measures current, but also needs to perform important tasks such as energy monitoring and ensuring the smooth operation of protective relays in single-phase and three-phase AC systems.
In addition to dielectric properties, epoxy resin also has excellent mechanical strength. This material has high tensile strength, which means that the 24 kV current transformer can withstand significant mechanical stress without deformation or fracture. This provides stable assistance in protecting the internal components of the current transformer from external forces and vibrations.
Epoxy resin castings are made by pouring epoxy resin into molds, providing very safe insulation for current transformers. The casting process also ensures a uniform and seamless insulation layer, effectively preventing electrical breakdown and leakage. In addition, insulation blocks environmental factors such as moisture, dust, and chemicals, further enhancing the protection of internal components. This manufacturing method ensures the quality and reliability of the castings, making it one of the commonly used insulation materials in the power industry.
Copper wires are commonly used in the windings of 33kV current transformers. These materials have high conductivity and mechanical durability, and can efficiently transmit current signals while withstanding operational stress.
In addition to its functionality, Youbian's 33kV current transformers are also known for their commitment to quality and innovation. It integrates advanced features, undergoes rigorous testing, and meets industry standards,.
The design of current transformers is used to measure and protect high-voltage distribution facilities installed internally
The value of secondary current is 5A or 1A, which can be combined. The accuracy level of the measurement circuit is 0.2S, 0.2, 0.5S, 0.5, 1, 3, and the accuracy of the protection circuit is 5P, 10P, and PS. The transformer meets the required accuracy level within the range of 25% to 100% of the rated load.
Limit the working current to 120% of IN. According to the agreement between the manufacturer and the customer, other values can be provided, such as 200% of IN.
CT is constructed as a transformer with single or multiple primary windings. The latest structure of these 24 kV current transformers not only allows switching on the secondary side, but also on the primary side. The main switch can be easily installed by connecting two jumpers to the circuit with two M12 screws.
The design of a 24 kV current transformer is used to measure and protect high-voltage distribution facilities installed internally.
The value of secondary current is 5A or 1A, which can be combined. The accuracy level of the measurement circuit is 0.2S, 0.2, 0.5S, 0.5, 1, 3, and the accuracy of the protection circuit is 5P, 10P, and PS. The transformer meets the required accuracy level within the range of 25% to 100% of the rated load.
