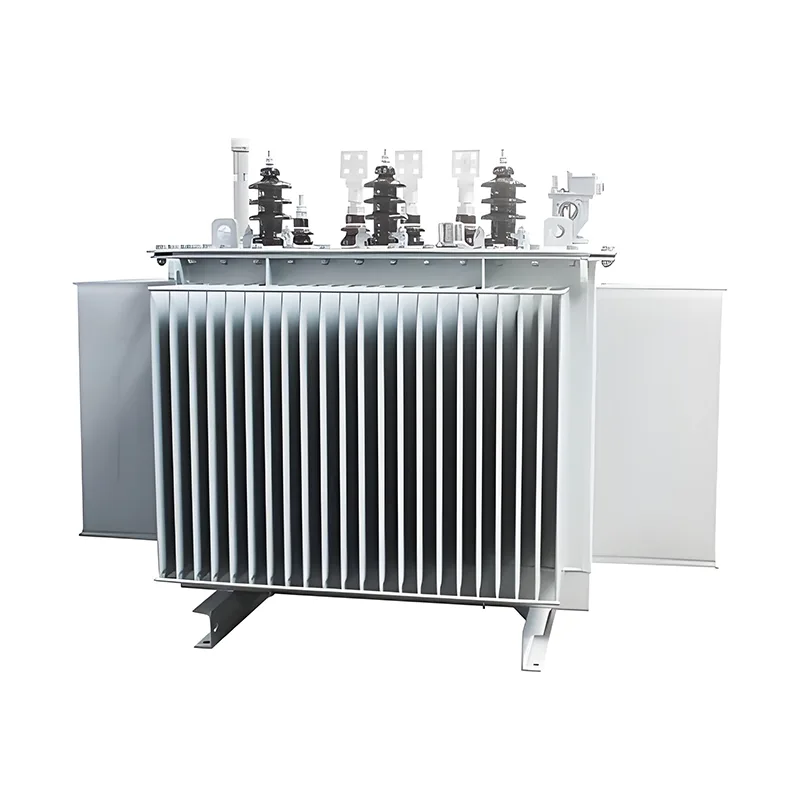

110KV 40000KVA Oil Immersed Transformer

The durable 110KV 40000KVA oil immersed transformer from Youbian has low no-load loss and controlled partial discharge level, with a long design life, especially performing well in environments with large temperature fluctuations or frequent load changes. It is a commonly used voltage level scheme for main and distribution network hubs.

1. Constant temperature and humidity clean control, lean management to improve consistency.

2 temperature field simulation+graded temperature control, optimizing insulation thermal stability and heat dissipation.

3. Divide noise sources into components for noise reduction, resulting in quieter operation

4 integrated molding structure, multiple detection to control the risk of leakage.

5. Swiss high-precision cross cutting+automatic stacking, with lower no-load loss and a comprehensive consumption reduction of about 20%.

6. Through the short-circuit impact test conducted by authoritative institutions, the reliability is more reliable with a single pass.

Application

Urban main grid substation, focusing on noise, energy efficiency, and reliability

Industrial park dedicated substation, emphasizing short-circuit resistance and low partial discharge

Regional power supply backbone nodes, focusing on lifespan and maintainability

feature

The 110KV 40000KVA oil immersed transformer has optimized its core materials and structural design, reducing no-load losses by more than 10% compared to current national standards and load losses by more than 5%. The overall energy efficiency is significantly better than industry standards, meeting the requirements of high efficiency and energy conservation.

When the product operates in natural cooling mode, the noise level is controlled within 60 decibels. For special scenario requirements, customized low-noise solutions can be provided to achieve a quieter operating effect.

Combining high-quality insulation oil with optimized design of heat dissipation channels effectively improves heat dissipation efficiency, significantly reduces operating temperature, not only enhances equipment stability, but also extends product lifespan.

Optimization of fuel tank welding and sealing structure to reduce leakage risk, suitable for long-term outdoor operation

Reserve monitoring connections for oil temperature, winding temperature, gas, etc., for easy status assessment and early warning maintenance

advantage

Integrating electromagnetic optimization design, parametric drawing, performance analysis and structural optimization, automatic drawing and other functions of 110KV 40000KVA oil immersed transformer to achieve transformer design resource sharing, search, modification and version control of various data information.

Flow field, temperature field, electric field, leakage magnetic field, wave process, short-circuit force. The research and design of each series of products are carried out through simulation analysis of flow and temperature fields to determine the average temperature rise of the coil and the hot spot temperature seat, ensuring product performance.

By collecting key data such as temperature, current, voltage, vibration, and grid harmonics from a 110KV 40000KVA oil immersed transformer, online power quality analysis, fault alarms, and installation on mobile devices can be achieved.
